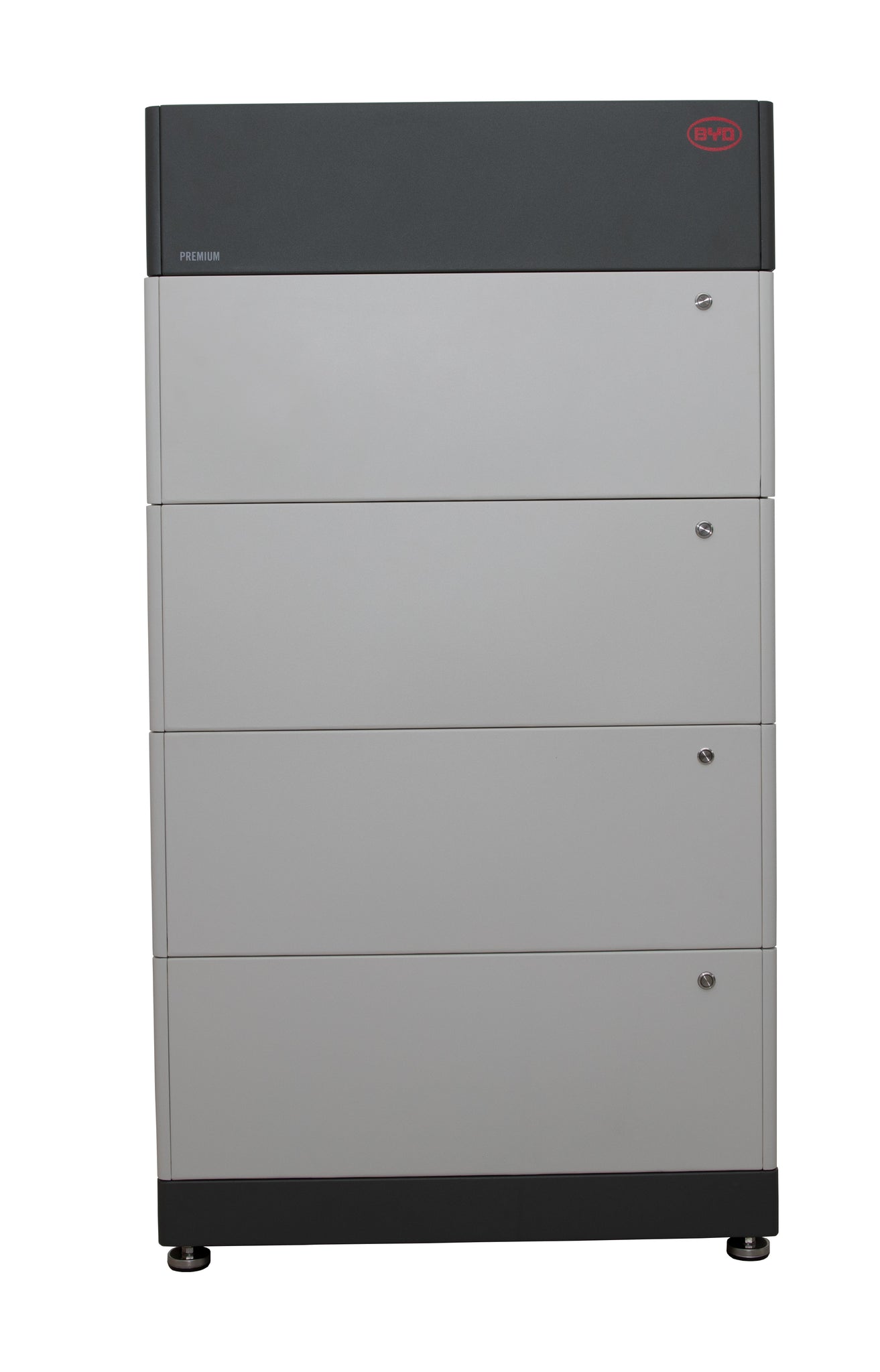

BYD Battery-Box Premium LVS 16.0

BYD Battery-Box Premium LVS 16.0

Regular price €6.230,00 €0,00

Taxes:
0% - outside EU
0% - inside EU with VAT
21% - inside EU without VAT

Shipping calculated at checkout

BYD Battery-Box Premium LVS 16.0

Battery Module:                             LVS (4 kWh, 51.2 V, 45 kg)
Number of Modules:                     4
Usable Energy: [1]                         16 kWh
Max Cont. Output Current: [2]      250 A
Peak Output Current: [2]               360 A, 5 s
Dimensions: (H/W/D)                    1227 x 650 x 298 mm
Weight:                                          199 kg
Nominal Voltage:                           51.2 V
Operating Voltage:                        40-57.6 V
Operating Temperature:               -10 °C to +50°C
Battery Cell Technology:                Lithium Iron Phosphate (cobalt-free)
Communication:                            CAN / RS485
Enclosure Protection Rating:         IP55
Round-Trip Efficiency:                   ≥95%
Scalability: [3]                                Max. 64 Modules in Parallel (256 kWh)
Certification:                                  VDE2510-50 / IEC62619 / CE / CEC / UN38.3
Applications:                                  ON Grid / ON Grid + Backup / OFF Grid
Warranty: [4]                                  10 Years

    [1] DC Usable Energy, Test conditions: 100% DOD, 0.2C charge & discharge at + 25 °C. System Usable Energy may vary with different inverter brands
    [2] Charge derating will occur between -10 °C and +5 °C
    [3] Parallel tower function only available for 1 to 4 battery modules per tower. LVS 20.0 and LVS 24.0 can only be used as a single tower.
    [4] Conditions apply. Refer to BYD Battery-Box Premium Limited Warranty Letter.
