Victron EasySolar 12/1600/70-16 MPPT 100/50
0% - outside EU
0% - inside EU with VAT
21% - inside EU without VAT

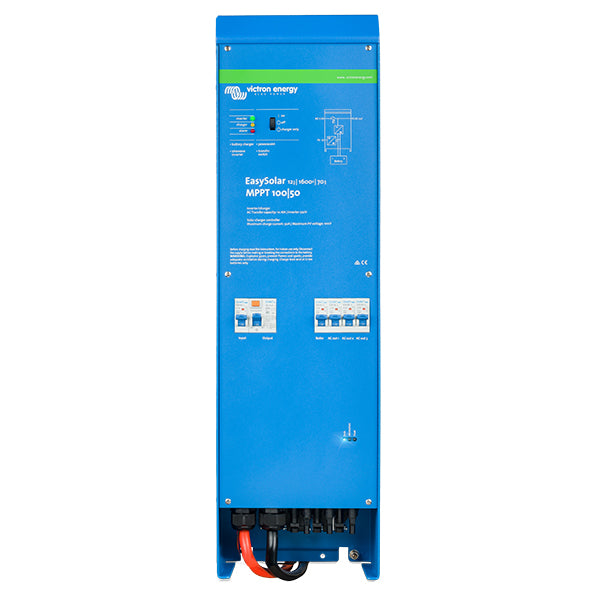

Victron EasySolar 12/1600/70-16 MPPT 100/50 all-in-one solar power solution with MPPT solar charge controller, an inverter/charger and AC distribution.
Need Individual Offer for Your Project? Contact with us: firstname.lastname@example.org
All-in-one solar power solution
The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
The solar charge controller: Blue Solar MPPT 100/50
Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.
The inverter/charger: MultiPlus Compact 12/1600/70
The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.
Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.
