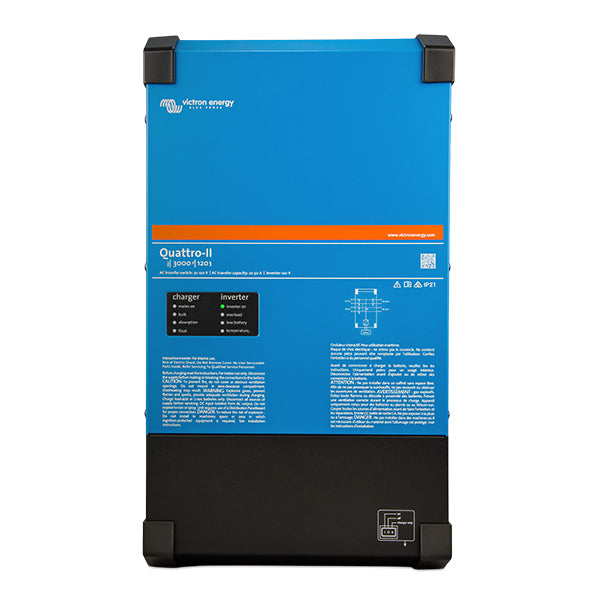

Victron Quattro-II 24/3000/70-50/50 2x120V

Victron Quattro-II 24/3000/70-50/50 2x120V

Regular price €1.392,00 €0,00

0% - outside EU
0% - inside EU with VAT
21% - inside EU without VAT

Shipping calculated at checkout

Victron Quattro-II 24/3000/70-50/50 2x120V


Warranty: 5 Years

120/240V input and output, or 120V input and output (always 120V output when in inverter mode)

The two AC inputs can be supplied from a split-phase 120/240V source or a single-phase 120V source. When one of the AC sources is available, the Quattro will feed through the AC to its output. The output will therefore mirror the AC input. The inverter/charger connects to the neutral and the preferred input line (L1). The power needed to charge the batteries will therefore be drawn from L1. The Quattro switches to inverter operation when no AC source is available. The inverter output is 120V single-phase. In invert mode, the Quattro connects both output lines (L1 and L2) together to provide 120VAC to loads on either line. Any 240V loads will therefore be supplied only when the Quattro is supplied by a split-phase AC source. This prevents heavy loads such as water heaters or 240V air conditioners from discharging the battery.
